5130V

VISION® 5130V

From 5 to 13...
... the Allrounder!

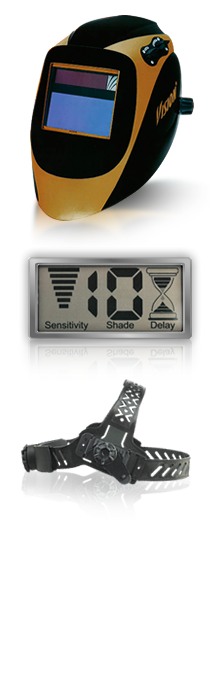

The VISION® 5130V digital is the autodarking mask for superior welders, who expect maximum effort and flexibility. The Helmet is equipped with Delay and Sensitivity and is perfect for:

  • micro-plasma welding
  • plasma welding and -cutting
  • flux-cored self shielded
  • arc welding

  • WIG-welding (from 5 Ampere)
  • MIG/MAG-welding
  • electrodes welding


  • Cartridge type
  • manually adjustable from
  • DIN 4/5-9 to DIN 4/9-13
  • grind mode

  • Reaction times
  • bright-dark: 0.1 ms
  • dark-bright: 0.1 - 3.5 s

  • Power supply
  • solar cells

  • Headband
  • optimized comfort headband

  • Viewing area
  • 5130V digital: 48 x 96 mm

  • UV/IR protection
  • permanent up to DIN level 16

  • Guarantee
  • 3 years

  • Design approvals
  • CE EN 379, EN 175, ANSI Z87.1

  • Ratings
  • 1 / 1 / 1 / 2
